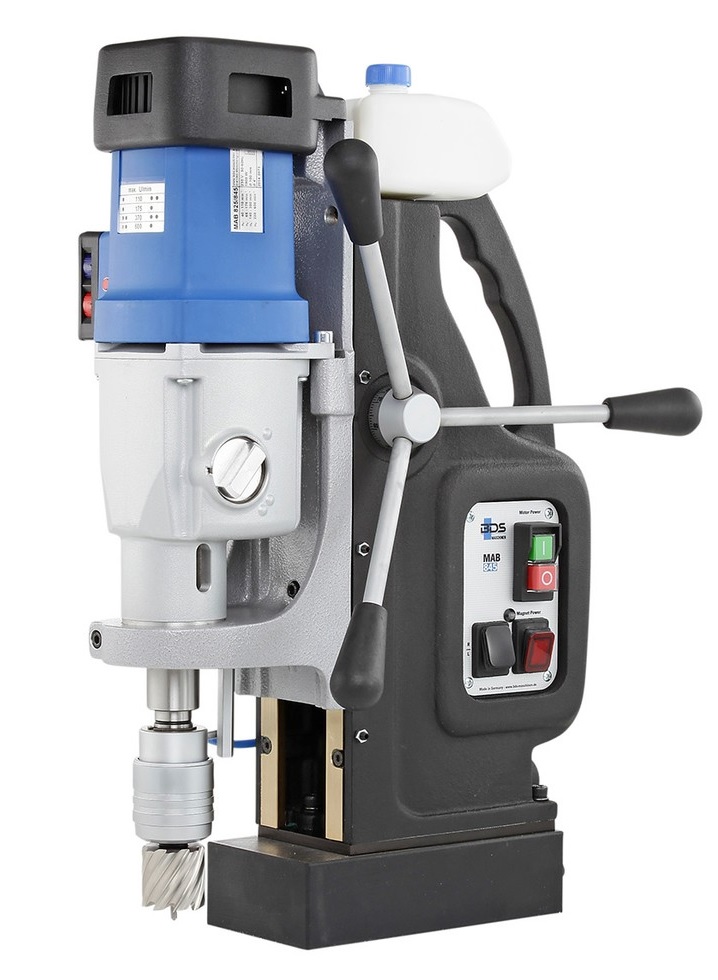

The BDS MAB845 Magnetic Base Drill With Swivel Base is a heavy duty mag base drill ideal for the structural steel, plant construction and engineering industries.  With an MT3 arbour, the MAB845 can take core drills sizes up to 110mm depth with a maximum diameter of 100mm.

The Swivel Base technology of BDS allows easy and precise movement of the drilling machine on the magnet. The machine can be swivelled by 30° to the left and right and be moved 20 mm forward and backwards. Precise centring is thus significantly easier. Swivel Base ensures greater comfort and safety, particularly when working on a vertical surface or overhead.

For more information on the BDS range please visit www.magdrillbds.com.au

Features:

– Overheating protection
– Magnet indicator
– Permanent internal lubrication
– Swivel base adjustment
– Variable speed & torque controls
– Reversible motor
– Safety clutch
– Full wave control electronics
– Carbon brush wear indicator

Specifications:

Voltage: 230V AC 50Hz
Motor Output: 1800W
Stroke: 255mm
Arbour: MT3, 32mm Weldon
30mm Depth Drilling Capacity: 12 – 100mm diameter
55mm Depth Drilling Capacity: 12 – 100mm diameter
110mm Depth Drilling Capacity: 20 – 100mm diameter
Twist drill: 31.75mm
1st Speed Range: 40 – 110 min-1
2nd Speed Range: 65 – 175 min-1
3rd Speed Range: 140 – 360 min-1
4th Speed Range: 220 – 600 min-1
Magnet Size: 110 x 220 x 54mm
Weight: 25kg
